Product Description

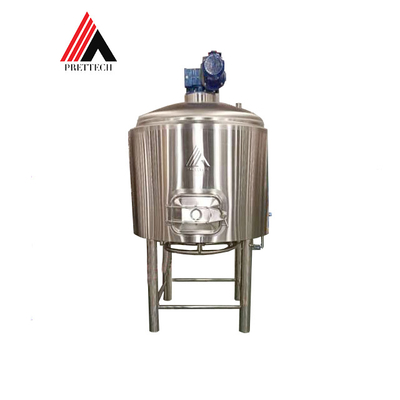

500l stainless steel 304 mixing tank for food industry ( Capacity can be customized)

Th mixing tank is adopt in all the food industry making plants for blending. The agitator can be mounted on top or on side shell.

The top can be conical or flat with hinged cover. Cooling/heating jacket is optional as required. Capacity can be from 1000L to 20,000L.

It is made of sanitary grade stainless steel. This material contains no toxic elements, has good strength and good resistance to corrosion and rust. This Classic Tank has excellent sealing performance as all welded parts are polished smoothly. And this product is equipped with automatic spray cleaning machine, so it is easy to clean.

Configurations:

SS304
Cylindrical shell
Conical top and bottom
Supporting legs (adjustable feet optional)
Top round manhole
Side oval manhole
Dimple cooling jacket (cooling coil)--optional
Inlet/outlet
Drain outlet
Thermometer
Breathing valve
Sampling valve
Level gauge

Advantages

1.Made by nice stainless steel 304,sanitary grade,
2.All welded parts are polished smoothly,
3.Interior cooling plate has better performance of heat exchanging,
4.Reasonable pricesAdvantages

Code	Capacity	Shell Dimension	Total Height	Legs	Cooling Area
Code		kl	mm	mm	pcs	m2
FT1	1	920*1500	2180	3	1.4
FT2	2	1270*1610	2600	3	2.2
FT3	3	1500*1830	3000	4	3
FT4	4	1600*2000	3250	4	4
FT5	5	1600*2440	3650	4	5
FT6	6	1800*2440	3500	4	5.5
FT8	8	1820*3050	4650	4	7
FT10	10	1900*3660	5050	4	8.5
FT12	12	1900*4270	5750	4	10
FT15	15	2000*4880	5950	4	12
FT20	20	2300*4880	6100	4	14
FT25	25	2600*4880	6050	4	15
FT30	30	2600*5500	6550	4/6	18

Company Profile

JIANGSU PRETTECH MACHINERY& TECHNOLOGY CO., LTD (Below named PRETTECH) Prettech was established in 1971 and is now known as the top brand in the industry of stainless steel tank in China, especially for food&beverage, pharmacy, biochemicals and agriculture processing. Till 2015 total sales volume comes up to US$250 million, and total number of employee reaches 4500. Our business range covers consulting, designing, fabricating, installation, commissioning &training. Product Range covers varied stainless steel tanks for liquid storage, fermenting, blending, temperature keeping, distilling,sterilizing,filtering and grain treatment. Prettech
stainless steel tanks are exported to 20 countries and receive a favorable response. We provide consultation, design, producing, installation and varied shipping solution according to each client’s requirements and demands. We supply not only regular tanks, but also customized tanks.

Prettech is committed to do the first brand of stainless steel tank solution.

Our Facility

Advanced Laser&CNC Processing Center, which can achieve fast cutting without burs, accurate positioning, higher efficient and fewer human errors.

Workshop Corner

Automatic welding and manual welding adopted
All welders are qualified and certified

Our Certificate (ISO9001, CE, PED, etc.)

Test & Inspection

Static pressure test on tank body and jacket / Dye penetration test on welding/ X-ray inspection / NDT

Packing & Delivery

√ Seaworthy packaging&reinforcement to minimize damages during shipping&transportation.
√ Delivery to customer's door, and self-loading truck service available if necessary.
√ Varied container types are optimized including general container and flat rack.

FAQ

Q: Can you produce tanks with S.S.316L?

A: Yes we can, the wetted-parts are produced by S.S.316L to guarantee the corrosion resistance, the non-wetted parts are produced by S.S.304 to reduce cost. Q: What’s the lead time?Q: What’s the lead time? A: 35-50 working days depend on the order quantity. Q: How do you ship the goods?Q: How do you ship the goods? A: We usually ship by sea in containers or flat rack.A: We usually ship by sea in containers or flat rack. Q: Are you factory or trading company?Q: Are you factory or trading company? A: We are a manufacturer and export by ourselves.A: We are a manufacturer and export by ourselves.

Q: Can your factory produce products according to our samples or drawing?

A: Yes, we can do OEM and customization.

Q: What is your nearest port?

A: Qingdao port,China Q: Do you supply door to door shipping?Q: Do you supply door to door shipping? A: Yes we do, Prettech do ocean shipping, customs clearance, import procedures and deliver products to the appointed place.A: Yes we do, Prettech do ocean shipping, customs clearance, import procedures and deliver products to the appointed place.

Q: How do you guarantee this machine normally operating?

A: Every machine is tested in our factory before shipping, We will adjust the machine to optimal effect before delivery. And spare parts arew always available and free for you in warranty time.

Q:Do you supply after-sale services?

A: Yes we do, if any defects occurred, Prettech would give instructions of how to handle, arrange fast repair locally if needed.

Q: What inspections will you do before delivery in your factory?

A: All tanks would be tested by static pressure test, dye penetration or X-ray test available if requested, we have our own test lab.
